Optical Switches Specification:

DESCRIPTION
LIGHTech's optical switch modules are available in single mode and multi-mode models, and can be ordered with latching or non-latching features. 2x2 optical switches are available in blocking and non-blocking models. All of LIGHTech's optical switch modules feature excellent repeatability, very low back reflection, and low cross-talk.

CONFIGURATIONS

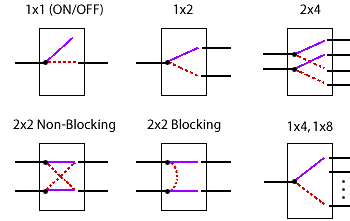

1x1, 1x2 and 2x2 Optical Switches (LT 200 and LT 210)

PERFORMANCE HIGHLIGHTS *,**

1x1 & 1x2
(LT 200) 1x1 & 1x2
(LT 210)
2x2 (LT 200) 2x2 (LT 210)
Unit

Insertion Loss¹

0.5 typical;
0.8 max 0.5 typical;
0.8 max
1.0 typical;
1.2 max²
0.5 typical;
0.8 max
dB

Repeatability

< +/- 0.02
< +/- 0.02
< +/- 0.02
< +/- 0.02
dB

Switching Time

10 typical;
15 max 5 typical;
8 max
15 typical;
25max 5 typical;
8 max
ms

Operating Temperature

0 to 65
0 to 65
0 to 65
0 to 65
C

Back Reflection

< - 55
< - 55
< - 55
< - 55
dB

Cross-talk

< - 70
< - 70
< - 70
< - 70
dB

Maximum Operating Current

60

60

54

60

mA

Nominal Operating Voltage³

5
5
5
5
VDC

PDL

< 0.1
< 0.1
< 0.1
< 0.1
dB

Durability

10 million min.
10 million min.
10 million min.
10 million min.
cycle

Wavelength Window

1280 ~ 1575
1280 ~ 1575
1280 ~ 1575
1280 ~ 1575
nm

Standard Control

***

PCB Mountable

***

PCB Mountable

--

TTL Control

Optional

Optional

Optional

Optional

--

Housing Dimension

12 x 20 x 62

5.5 x 22 x 48

12 x 20 x 66

5.5 x 22 x 48

mm

* All specifications referenced without connectors.
** Multimode switches available upon request.
*** Direct Control / Wire harness.
1. Insertion loss based on single wavelength.
2. Add 0.6dB insertion loss for loop back.
3. Optional range from 4.75 to 5.0 volts (at room temperature).

1x3 - 1x5 Optical Switches (LT 500)

PERFORMANCE HIGHLIGHTS *,**

1x3 ~ 1x5 (LT 500)
Unit

Insertion Loss¹

0.6 typical; 1.0max

dB

Repeatability

< +/- 0.02

dB

Switching Time

8 typical; 12 max

ms

Operating Temperature

0 to 65
C

Back Reflection

< - 55
dB

Cross-talk

< - 70
dB

Maximum Operating Current

  88

mA

Nominal Operating Voltage²

5
VDC

PDL

< 0.1
dB

Durability

10 million min.
cycle

Wavelength Window

1280 ~ 1340; 1520 ~ 1580
nm

Standard Control

TTL / 14 pin out

- -

Direct Control

     Optional

- -

Housing Dimension

     15 x 50 x 70

mm

* All specifications referenced without connectors.
** Multimode switches available upon request.
1. Insertion loss based on single wavelength.
2. Operating range from 4.75 to 5.5 volts (at room temperature)
3. Add 0.2 dB for dual wavelength.

1x3 - 1x8 Optical Switches (LT 800)

PERFORMANCE HIGHLIGHTS *,**

1x3 ~ 1x8 (LT 800)
Unit

Insertion Loss¹

0.6 typical; 1.0max

dB

Repeatability

< +/- 0.02

dB

Switching Time

15 typical; 25 max

ms

Operating Temperature

0 to 65
C

Back Reflection

< - 55
dB

Cross-talk

< - 70
dB

Maximum Operating Current

88

mA

Nominal Operating Voltage²

5
VDC

PDL

< 0.1
dB

Durability

10 million min.
cycle

Wavelength Window

1280 ~ 1340; 1520 ~ 1580
nm

Standard Control

TTL / 14 pin out

--

Direct Control

     Optional

--

Housing Dimension

     85 x 80 x 20.5

mm

* All specifications referenced without connectors.
** Multimode switches available upon request.
1. Insertion loss based on single wavelength.
2. Operating range from 4.75 to 5.5 volts (at room temperature)
3. Add 0.2 dB for dual wavelength.

The information set forth in this document reflects our best knowledge at the time of issue. The document is subject to changes pursuant to new developments and findings, and a similar reservation applies to the properties of the products described. We undertake no liability for results obtained by usage of our products and information. 10/2001
